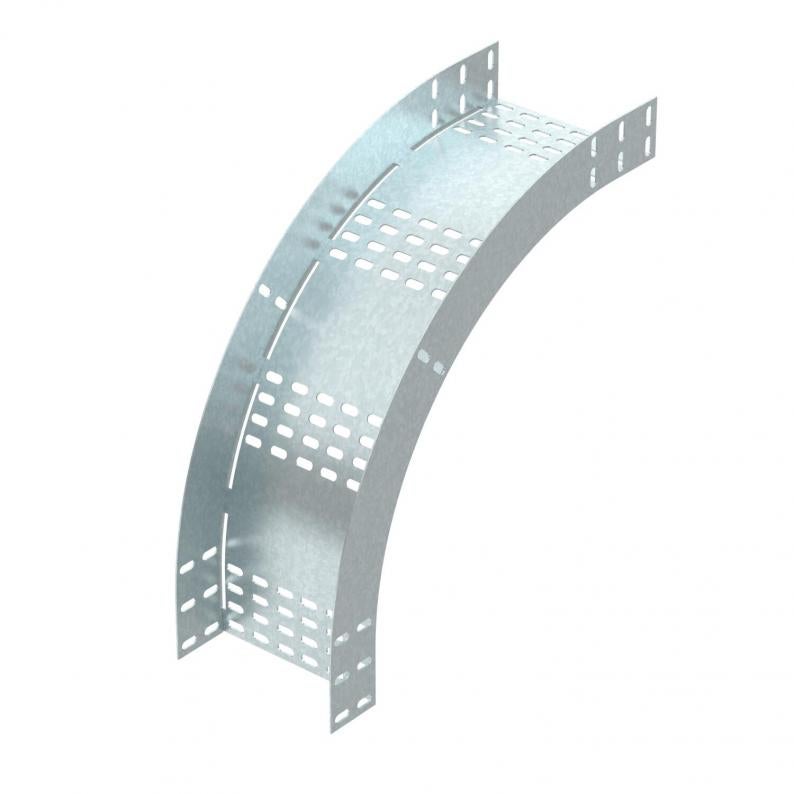

90° vertical bend, falling, PT76 FT

90° vertical bend, falling, PT76 FT

Type PT76 76 HDG
|
Item no. 6900703
|
EAN 4012196062447
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

90° vertical bend, falling, for PT76 cable tray types.

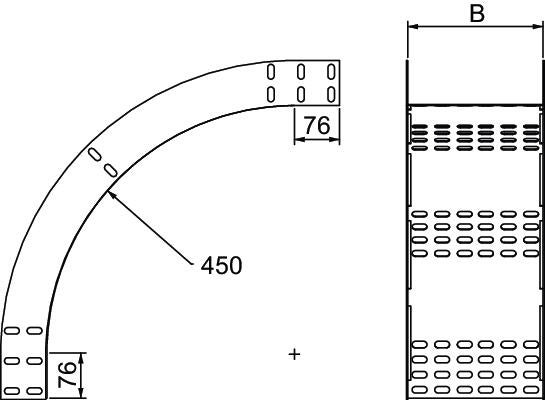

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.



  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

Dimensions

Width76 mm
Height76 mm

Technical data

Plate thickness1,6 mm
Dimension533x533x76
SurfaceHot-dip galvanised
MaterialSteel
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
PT76 76 HDG
Item no.
6900703
Width
76
Surface
Hot-dip galvanised
Material
Steel
PT76 114 HDG
Item no.
6900707
Width
114
Surface
Hot-dip galvanised
Material
Steel
PT76 152 HDG
Item no.
6900711
Width
152
Surface
Hot-dip galvanised
Material
Steel
PT76 228 HDG
Item no.
6900715
Width
228
Surface
Hot-dip galvanised
Material
Steel
PT76 304 HDG
Item no.
6900719
Width
304
Surface
Hot-dip galvanised
Material
Steel
PT76 457 HDG
Item no.
6900723
Width
457
Surface
Hot-dip galvanised
Material
Steel
PT76 609 HDG
Item no.
6900727
Width
609
Surface
Hot-dip galvanised
Material
Steel
