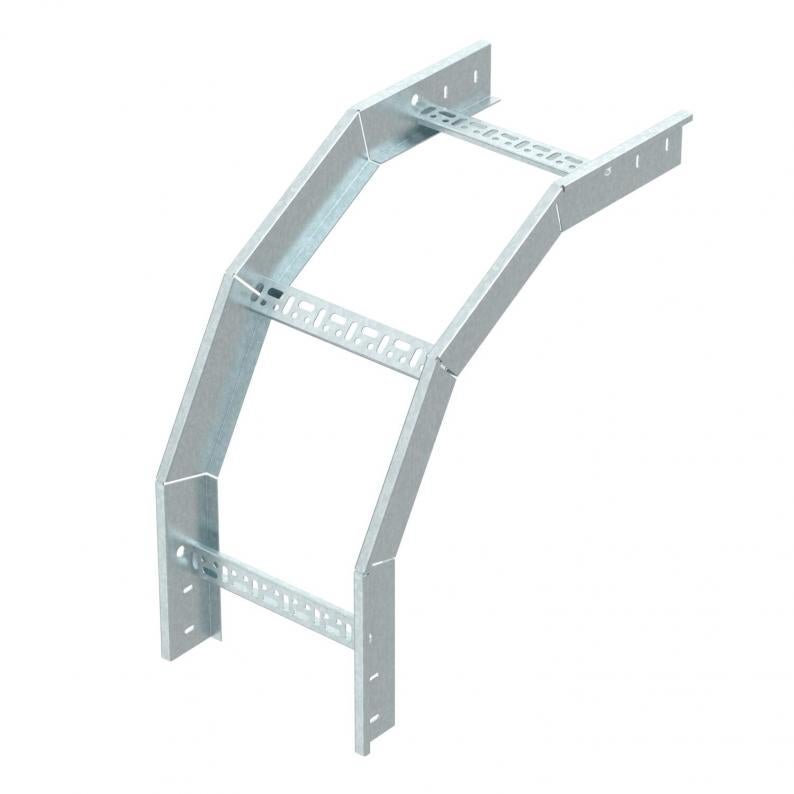

90° vertical bend, falling, OL76 FT
Type OL76 200 HDG
|Item no. 6902961
|EAN 4012196069415
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, falling, for all OL76 cable ladder types of 76 mm side height.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 76 mm |
Technical data
| Rail thickness | 1,6 mm |
|---|---|
| Dimension | 625x625x250 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
OL76 150 HDG
150
1,6
6902957
OL76 200 HDG
200
1,6
6902961
OL76 300 HDG
300
1,6
6902965
OL76 400 HDG
400
1,6
6902969
OL76 500 HDG
500
2
6902973
OL76 600 HDG
600
2
6902977
OL76 800 HDG
800
2
6902981
OL76 1000 HDG
1000
2
6902985
