90° vertical bend, falling AI30 FT
Type AI30 200 HDG
|Item no. 6907457
|EAN 4012196078752
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

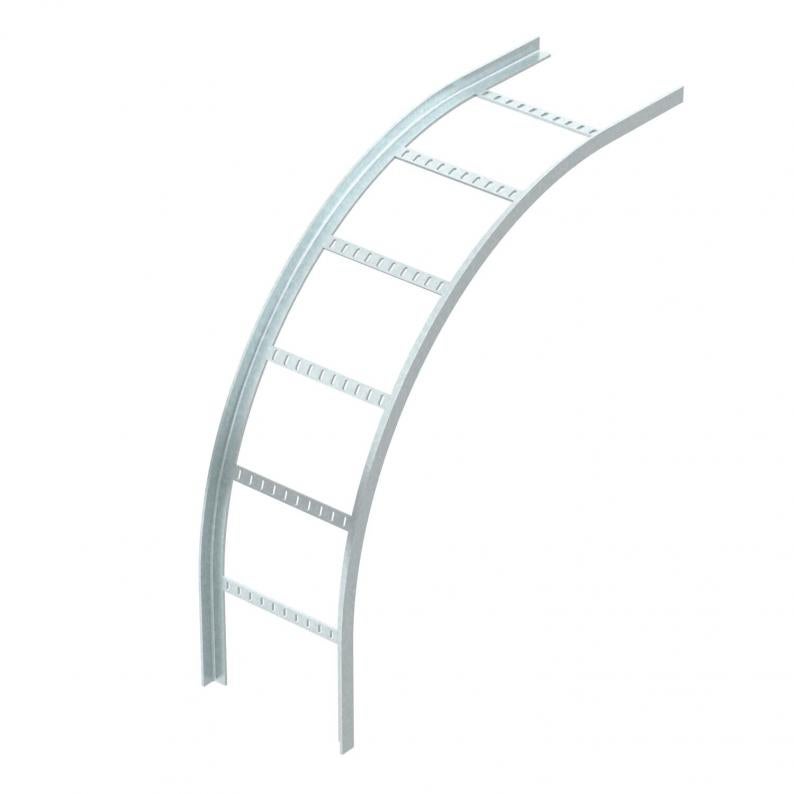

90° vertical bend, falling, for all AI30 cable ladder types of 30 mm side height.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 30 mm |
Technical data
| Rail thickness | 5 mm |
|---|---|
| Dimension | 880x880x210 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
AI30 150 HDG
150
5
6907453
AI30 200 HDG
200
5
6907457
AI30 300 HDG
300
5
6907461
AI30 400 HDG
400
5
6907465
AI30 500 HDG
500
5
6907469
AI30 600 HDG
600
5
6907473
AI30 800 HDG
800
5
6907477
AI30 1000 HDG
1000
5
6907481
Width
AI30 150 HDG
Item no.
6907453
Width
150
Rail thickness
5
AI30 200 HDG
Item no.
6907457
Width
200
Rail thickness
5
AI30 300 HDG
Item no.
6907461
Width
300
Rail thickness
5
AI30 400 HDG
Item no.
6907465
Width
400
Rail thickness
5
AI30 500 HDG
Item no.
6907469
Width
500
Rail thickness
5
AI30 600 HDG
Item no.
6907473
Width
600
Rail thickness
5
AI30 800 HDG
Item no.
6907477
Width
800
Rail thickness
5
AI30 1000 HDG
Item no.
6907481
Width
1000
Rail thickness
5
