90° vertical bend, falling 35 FS
Type RBV 315 F FS
|Item no. 7007208
|EAN 4012195711483
Item no. / Type
Width
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, falling, for all cable tray types of 35 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
Technical data

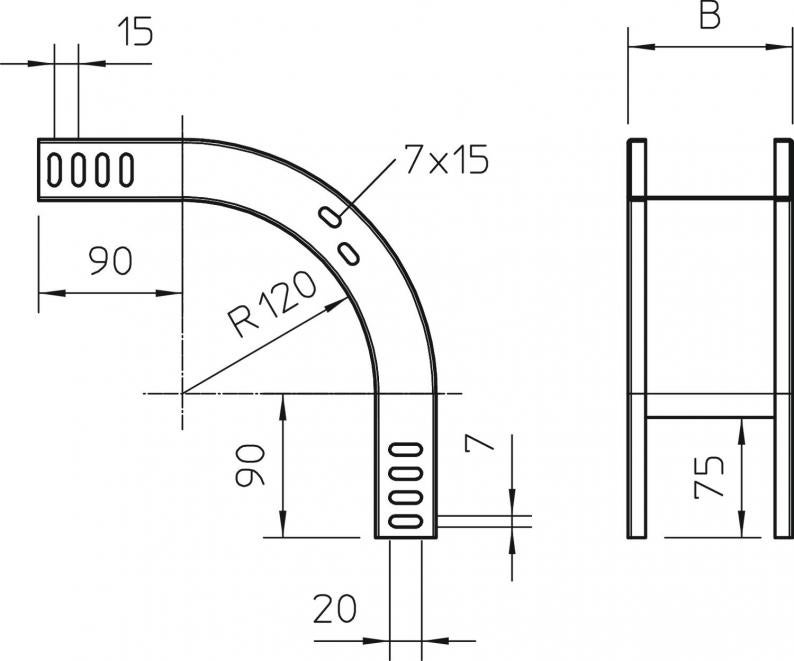

Dimensions
| Width | 150 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, falling |
| Dimension | 35x150 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBV 310 F FS
100
Strip galvanised
Steel
zinc
7007204
RBV 315 F FS
150
Strip galvanised
Steel
zinc
7007208
RBV 320 F FS
200
Strip galvanised
Steel
zinc
7007212
RBV 330 F FS
300
Strip galvanised
Steel
zinc
7007216
