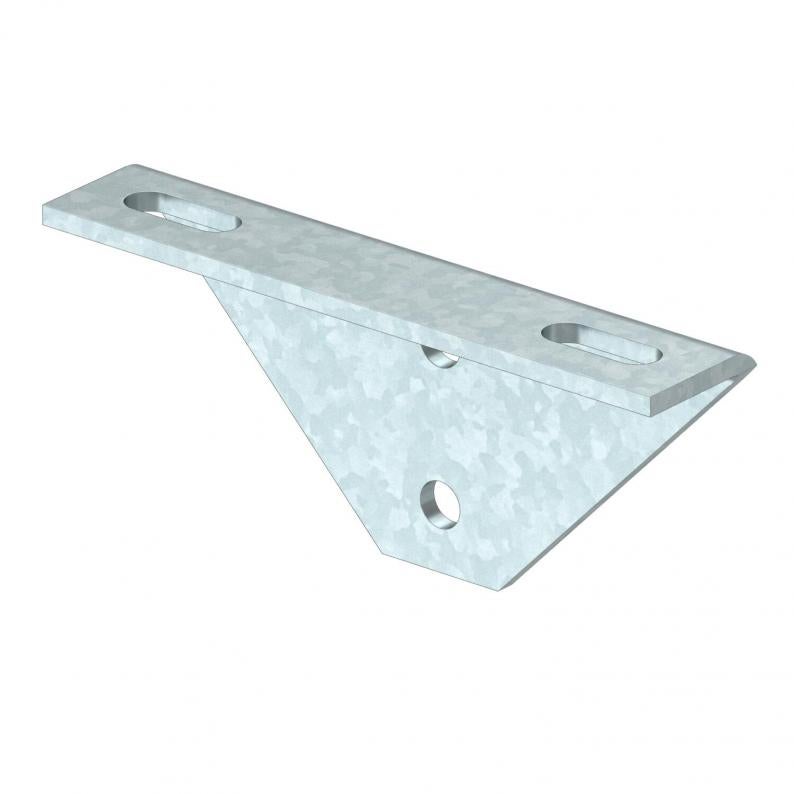

90° mounting bracket, reinforced, with 4 holes
Type OL1131 HDG
|Item no. 1500331
|EAN 4012196058891
Item no. / Type
1500331 / OL1131 HDG
Smallest selling unit: 1 piece
1piece
piece
Description
Reinforced mounting bracket with 4 holes to connect Olistrut profile rails at an angle of 90°.
Technical data
Dimensions
| Length | 214 mm |
|---|---|
| Width | 115 mm |
| Height | 40 mm |
Technical data
| Dimension | 214x115x40 |
|---|---|
| Surface | Hot-dip galvanised |
| Material | Steel |
