90° bend PS150 FT
Type PS150 150 HDG
|Item no. 6904053
|EAN 4012196072040
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

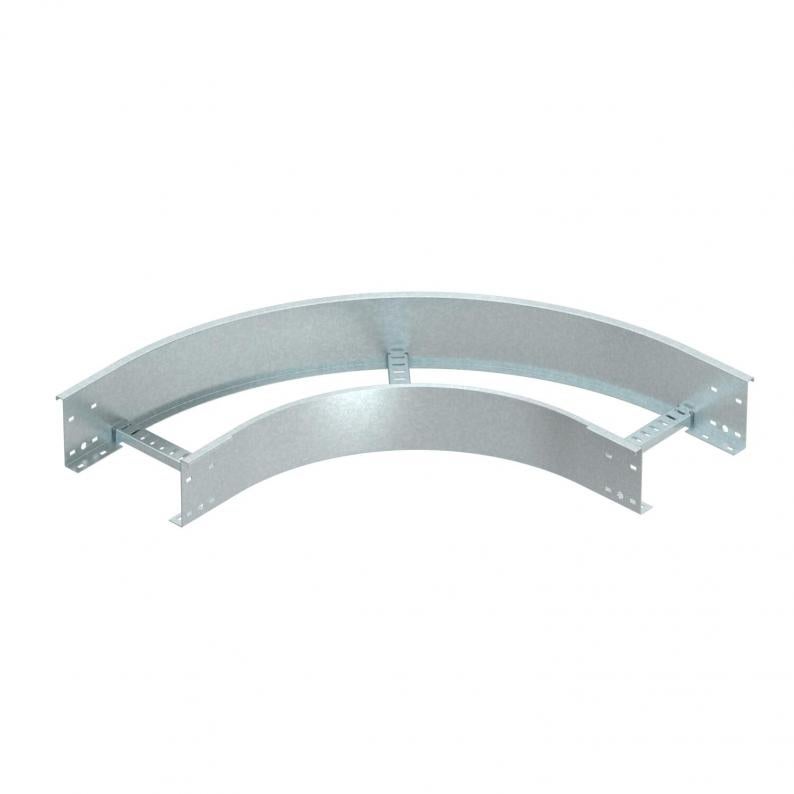

90° bend, horizontal, for all PS150 cable ladder types of 150 mm side height.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Height | 150 mm |
Technical data
| Rail thickness | 2 mm |
|---|---|
| Dimension | 770x770x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
PS150 150 HDG
150
2
6904053
PS150 200 HDG
200
2
6904057
PS150 300 HDG
300
2
6904061
PS150 400 HDG
400
2
6904065
PS150 500 HDG
500
2
6904069
PS150 600 HDG
600
2
6904073
PS150 800 HDG
800
2
6904077
PS150 1000 HDG
1000
2
6904081
Width
PS150 150 HDG
Item no.
6904053
Width
150
Rail thickness
2
PS150 200 HDG
Item no.
6904057
Width
200
Rail thickness
2
PS150 300 HDG
Item no.
6904061
Width
300
Rail thickness
2
PS150 400 HDG
Item no.
6904065
Width
400
Rail thickness
2
PS150 500 HDG
Item no.
6904069
Width
500
Rail thickness
2
PS150 600 HDG
Item no.
6904073
Width
600
Rail thickness
2
PS150 800 HDG
Item no.
6904077
Width
800
Rail thickness
2
PS150 1000 HDG
Item no.
6904081
Width
1000
Rail thickness
2
