90° bend PS100 FT
Type PS100 150 HDG
|Item no. 6903753
|EAN 4012196071333
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

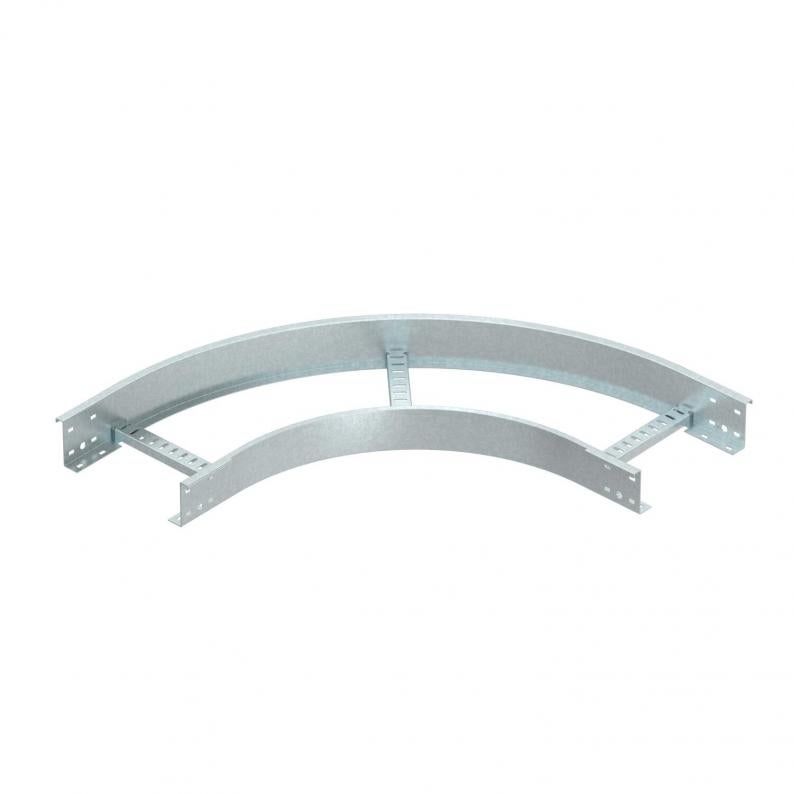

90° bend, horizontal, for all PS100 cable ladder types of 100 mm side height.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
Technical data
| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| Rail thickness | 2 mm |
| Dimension | 770x770x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
PS100 150 HDG
150
2
6903753
PS100 200 HDG
200
2
6903757
PS100 300 HDG
300
2
6903761
PS100 400 HDG
400
2
6903765
PS100 500 HDG
500
2
6903769
PS100 600 HDG
600
2
6903773
PS100 800 HDG
800
2
6903777
PS100 1000 HDG
1000
2
6903781
