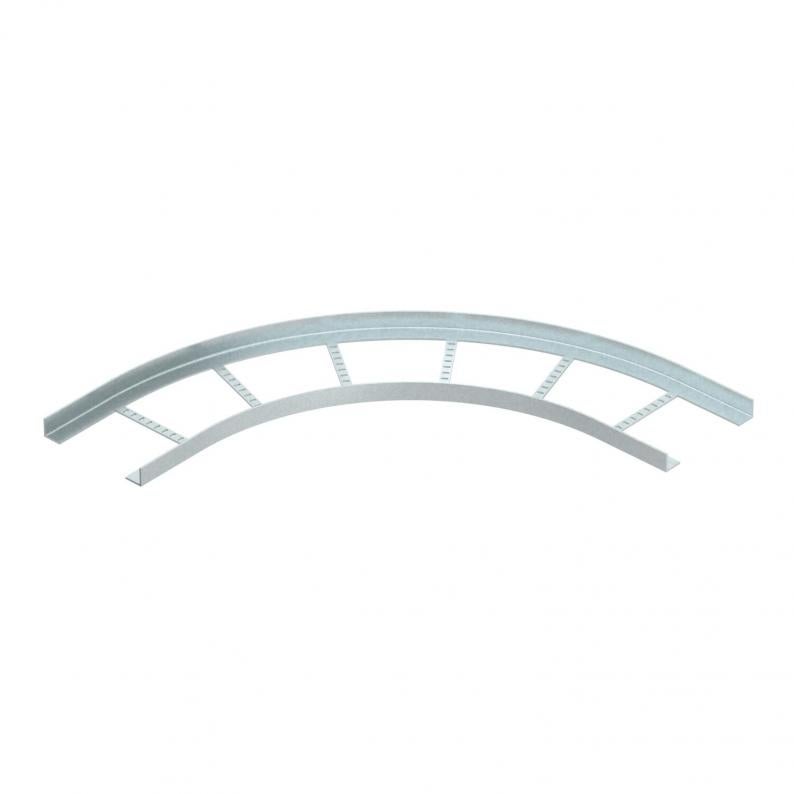

90° bend AI50 FT
Type AI50 150 HDG
|Item no. 6908053
|EAN 4012196079681
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend, horizontal, for all AI50 cable ladder types of 50 mm side height.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Height | 50 mm |
Technical data
| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| Rail thickness | 5 mm |
| Dimension | 1000x1000x50 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Rail thickness
Item no.
AI50 150 HDG
150
5
6908053
AI50 200 HDG
200
5
6908057
AI50 300 HDG
300
5
6908061
AI50 400 HDG
400
5
6908065
AI50 500 HDG
500
5
6908069
AI50 600 HDG
600
5
6908073
AI50 800 HDG
800
5
6908077
AI50 1000 HDG
1000
5
6908081
Width
AI50 150 HDG
Item no.
6908053
Width
150
Rail thickness
5
AI50 200 HDG
Item no.
6908057
Width
200
Rail thickness
5
AI50 300 HDG
Item no.
6908061
Width
300
Rail thickness
5
AI50 400 HDG
Item no.
6908065
Width
400
Rail thickness
5
AI50 500 HDG
Item no.
6908069
Width
500
Rail thickness
5
AI50 600 HDG
Item no.
6908073
Width
600
Rail thickness
5
AI50 800 HDG
Item no.
6908077
Width
800
Rail thickness
5
AI50 1000 HDG
Item no.
6908081
Width
1000
Rail thickness
5
